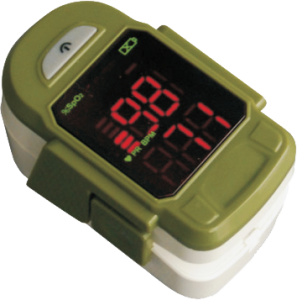

Fingertip Pulse Oximeter
The pulse oximeter is a device that is usually placed on a fingertip. It uses light beams to estimate the oxygen saturation of the blood.
Adult and Pediatrics
Measurement range
| SpO2 | |
|---|---|
| Measurement accuracy | 70% - 99% |
| Resolution | 1% |
| Measurement accuracy | 80% - 99%: ±2% |
| 70% - 80%:±3% | |
| 69%: no definition | |
| Pulse Rate | |
| Measurement range | 30 - 235bpm |
| Resolution | ±1bpm |
| Measurement accuracy | 30 - 99bpm: ±2bpm |
| 100 - 235bpm:±2% | |
| Display | |
| Type | Type Digital LEDs display |
| Parameters | SpO2, PR, Pulse bar |
| Mode | 1 display mode |
| Alarm | |
| Alarm | Battery-low indicator |
| Features: | |
|---|---|
| Small & lightweight design. | |
| Digital LEDs display. | |
| Display SpO2, PR, and Pulse bar. | |
| Low power consumption; automatically power off. | |
| Battery-low indicator. | |
| 2 AAA alkaline or rechargeable batteries. | |
| Accommodates widest range of finger sizes from pediatric to adult. | |
| Mechanical | |
| Dimension | 58mm (L) * 32mm (W) * 34mm (H) |
| Weight | 50g (including batteries) |
| Battery | |
| Two AAA 1.5V, 600mAh alkaline batteries could be continuously operated as long as 30 hours | |
| Environmental | |
| Operation Temperature | 5℃ - 40℃ |
| Storage Temperature | -20℃- 55℃ |
| Operation Humidity | ≤80%, no condensation |
| Storage Humidity | ≤93%, no condensation |
| Measurement Performance in Low Perfusion Condition Required the test equipment (BIO-TEK INDEX Pulse Oximeter tester) the pulse wave is available without failure when the simulation pulse wave amplitude is at 0.6%. Interference Resistance Capacity against Ambient Light Device works normally when mixed noise produced by BIOTEK INDEX Pulse Oximeter tester. |
Pulse oximeters measure how much oxygen is in your blood. They do this by shining a light through your skin to your blood vessels. The amount of oxygen in your blood will affect how much light is absorbed. Pulse oximeters usually have a display that shows you what percentage of oxygen is in your blood. Most normal values are between 95 and 100%. If your oxygen level is lower than normal, it may be a sign that something is wrong.
If you are like most people, you probably don't think much about your blood oxygen levels. However, your blood oxygen saturation (SpO2) level is a vital sign that can tell you a lot about your overall health. A pulse oximeter is a simple, non-invasive device that measures your SpO2 level and can be an important tool in monitoring your health. There are many reasons why you might need to get a pulse oximeter. If you have any chronic medical conditions, such as COPD, heart disease, or asthma, you may need to monitor your SpO2 levels closely. Pulse oximeters can help you and your doctor spot early signs of exacerbations or deterioration in your condition. Pulse oximeters can also be helpful if you are pregnant. During pregnancy, it is important to monitor your SpO2 levels because they can give clues about how well oxygen is being distributed to the fetus. If fetal oxygen levels are low, it can lead to serious complications for both mother and child. In addition, if you are planning to travel to high altitudes, a pulse oximeter can be used to monitor your SpO2 levels and help prevent altitude sickness. Many athletes use pulse oximeters during training to measure their VO2 max (oxygen uptake) and track their progress over time. Whether you have a chronic medical condition or not, a pulse oximeter can be a valuable tool in monitoring your health.
If you are experiencing any shortness of breath, whether it is due to an underlying health condition or not, it is always best to err on the side of caution and get a pulse oximeter. This will help you to keep track of your oxygen levels and ensure that they remain stable.
A pulse oximeter is a small, handheld device that measures how much oxygen your blood is carrying. It's an important tool for people with chronic lung conditions, such as asthma or COPD, because it can help you avoid potentially dangerous flare-ups. But even if you don't have a chronic lung condition, a pulse oximeter can be a useful tool. Checking your oxygen levels regularly can help you spot early signs of illness, such as a cold or the flu. And if you're active in sports or other activities that require physical exertion, monitoring your oxygen levels can help you gauge how well your body is coping and adjust your activity level accordingly. So how often should you check your pulse? The answer depends on your individual circumstances. If you have a chronic lung condition, you'll likely need to check more frequently than someone who doesn't. In general, though, checking your pulse once or twice a day should be sufficient for most people.
There are a few signs that may indicate poor oxygen saturation levels. If you experience any of the following, it is best to seek medical attention:
• Shortness of breath
• Feeling dizzy or lightheaded
• Confusion
• Rapid heart rate
• Chest pain
